SunGoldPower 550 Watt Monocrystalline Solar Panel SG-550WM Outlet Purchase

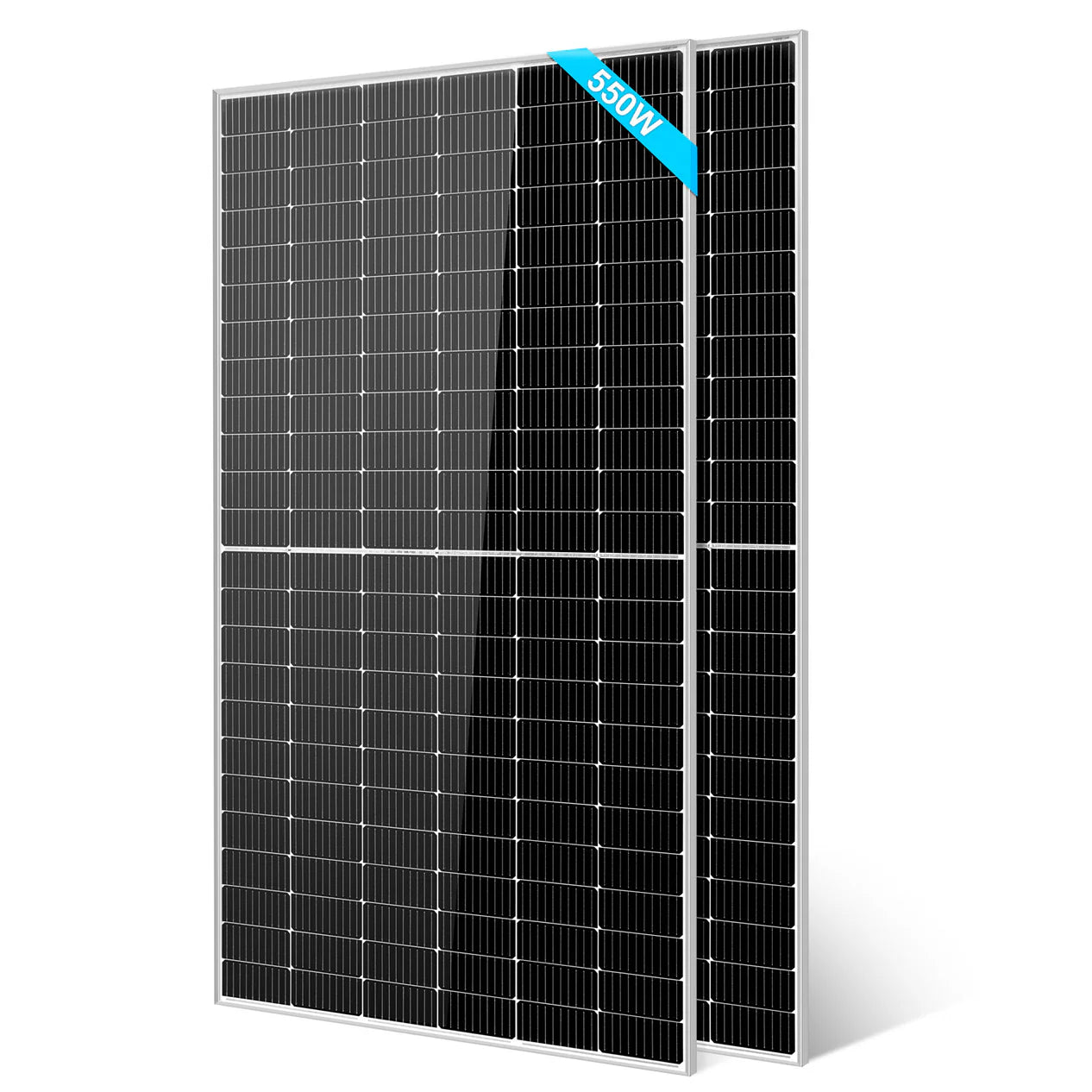

SunGoldPower 550 Watt Monocrystalline Solar Panel SG-550WM

---

Product Description

The long-lasting 550W monocrystalline solar PERC cells, the waterproof design ensures that the panel can be used in all weather conditions.
550 watt solar panels are designed for industrial and professional applications using scratch resistant anodized aluminum with a twin wall frame. The tough, sealed, aluminum frame will give you years and years of consistent, free power.
550 Watts Monocrystalline PV Panel is made with high conversion efficiency cells, it has excellent performance in low light environments.
Easy Installation with pre-drilled hole. Corrosion-resistant aluminum frame for extended outdoor use. Suitable for Caravan, RV, Golf car, Electric car, Yacht, Boat, Tent or backpack etc.
High modules conversion efficiency. Grade A solar cell and IP68 Rated waterproof solar panel connectors. This PERC solar panel has 5 year 95% output warranty, 10 year 90% output warranty, 25 year 80% output warranty. UL 61730



Features

550 Watt Monocrystalline PERC Solar Panel for Off Grid System

Sungoldpower PERC solar panel provides quiet, clean energy, which makes it easy to get all the electrical power you need for the sun to supply a cabin, camper, RV, or boat. Each panel features highly efficient silicon solar cells. It also comes with an IP68-rated junction box, making it suitable for marine applications. The aluminum frame (corrosion-resistant) is ideal for extended outdoor use, enhancing the overall lifespan of a solar panel.

Generating power by using solar panels is the best utilization of the amount of sunlight. By doing so, you can minimize your energy bills and get free energy for an extended period.

Specification

• Model Type    SG550WM
• Peak Power (Pmax)    550W
• Production tolerance    ±3%
• Maximum Power Current (Imp)    13.45A
• Maximum Power Voltage (Vmp)    41.00V
• Short Circuit Current (Isc)    14.03A
• Open Circuit Voltage (Voc)    49.7V
• Maximum System Voltage    1500V
• Wind Resistance    2400Pa
• Output Cables     12 AWG (1ft per cable)
• Number of Cells     144(6x 24),60 cells in series
• Cell Type    PERC Monocrystalline (7.2x 3.6 in)
• Certifications    UL 61730 CE TUV
• Product Weight    62.4lbs
• Product Dimension    89.7*44.7*1.4inch
• Package Weight    128.7lbs（2PCS）
• Package Dimension    92.1*47.2*3.5inch（2PCS）
• Performance    5 year 95% output warranty 10 year 90% output warranty 25 year80% output warranty
• Material and workmanship warranty    10 year material and workmanship warranty.



Product Documents

User Manual
