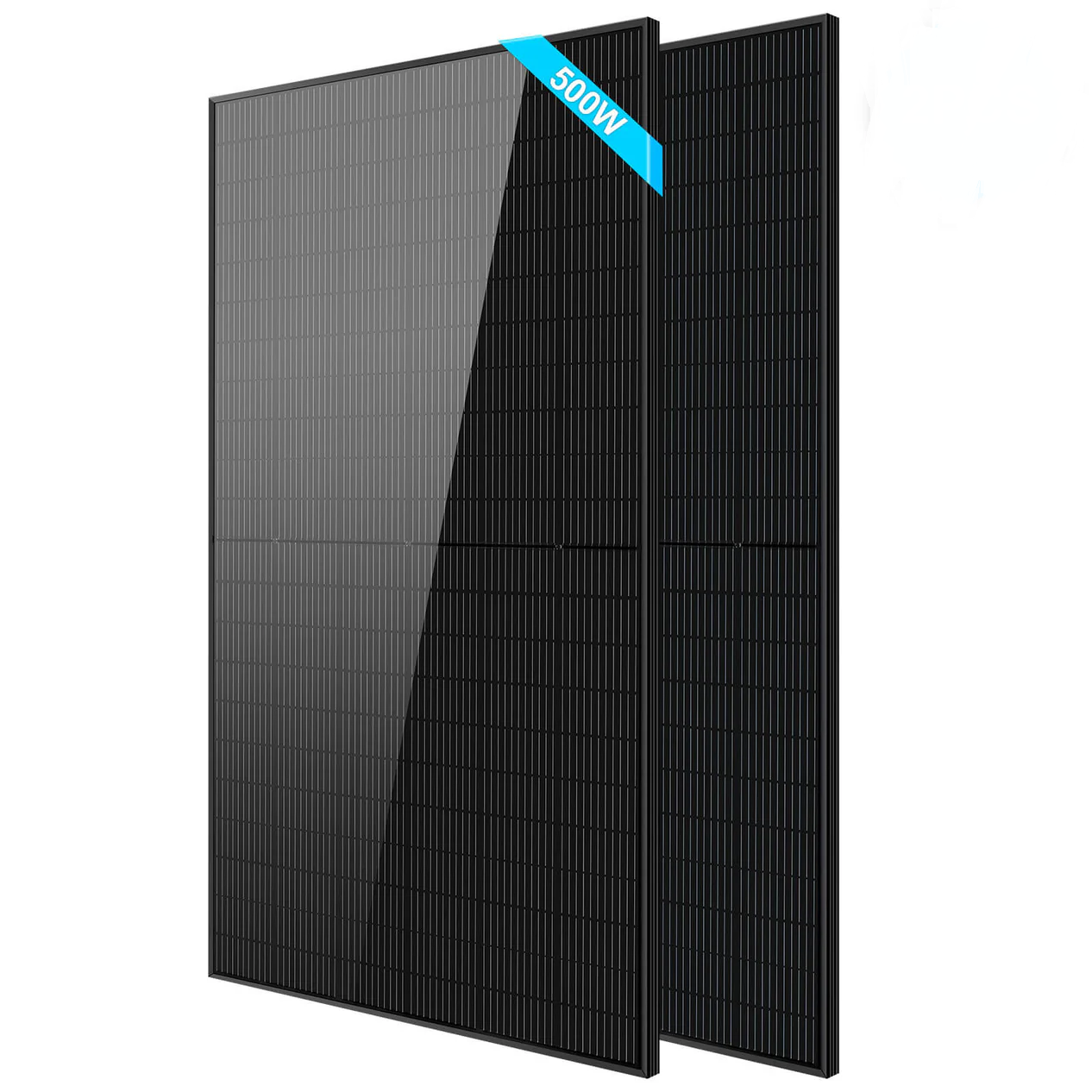

SunGoldPower 500 Watt Mono Black PERC Solar Panel SG-500WM
Product Description
High Efficiency Module : This module comes with Mono PERC Half-Cut Technology and has a module efficiency up to 21.05%. SunGoldPower 500W panels provide more output per surface area than most tranditional panels.
High Tolerance: 500W solar panels are made with half-cell technology,it improves the power output and performance of solar modules because they offer a higher shade tolerance due to unique wiring system and number of cells increases.
Widely Use : 500W solar panel is ideal for off-grid,on grid or hybrid solar system,can be an ideal facility used in RV, Tiny House, marine, household power supply, commercial building etc. It helps to save power consumption and save you much more in the long future.
Warranty : the solar panels come with 10 years workmanship warranty and 25-year linear performance warranty,TUV certificated,UL certificated is coming later.UL 61730
Features
Off-grid & On-grid Solution & Hybrid System
This high efficiency PERC 500w solar panel works for both on-grid /off-grid solar/hybrid solar system, storing energy with battery, reducing power bills, or powering complete off-grid house.
High efficiency
High efficiency monocrystalline PERC module, 182mono half-cells with an all-black design.
Water Proof
The solar junction box and solar connectors with an IP68 rating is completely protected from dust and will properly functional after Temporary immersion in water (up to 1m deep).
Snow and Wind Protection
Passed load test of 5400 Pa to withstand heavier snow load and 2400 Pa to withstand wind pressure .
Home Solar System
With balanced power, improved stability, and economical electricity costs.
Specification
- Model Type SG500WM
- Peak Power (Pmax) 500W
- Production tolerance ±3%
- Maximum Power Current (Imp) 13.30A
- Maximum Power Voltage (Vmp) 37.60V
- Short Circuit Current (Isc) 14.09A
- Open Circuit Voltage (Voc) 44.36V
- Maximum System Voltage 1500V
- Wind Resistance 2400Pa
- Output Cables 12 AWG (1ft per cable)
- Number of Cells 132(6*22)
- Cell Type PERC Mono182*91mm
- Certifications UL 61730 CE TUV
- Product Weight 56.2lbs
- Product Dimension 82.44*44.65*1.38inch
- Package Weight 124.6lbs（2PCS）
- Package Dimension 85.4*47.6*3.5inch（2PCS）
- Performance 5 year 95% output warranty 10 year 90% output warranty 25 year80% output warranty
- Material and workmanship warranty 25 years Linear Product Workmanship Warranty and 10 years workmanship warranty.
