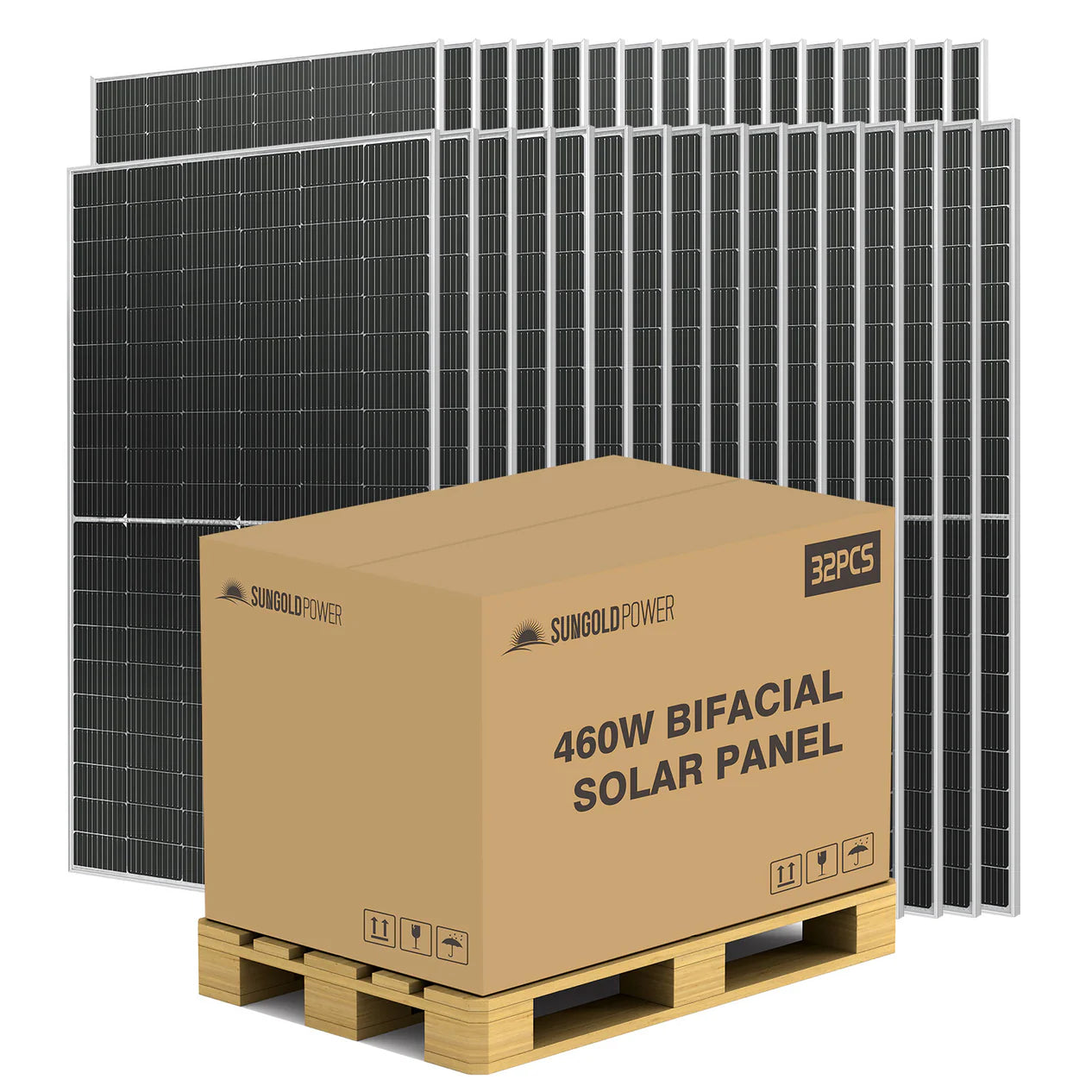

SunGoldPower 460 Watt Bifacial PERC Solar Panel Full Pallet (32 Panels ) SG-460WBG

---

Product Description

Bifacial monocrystalline PERC solar panel can generate more energy up to 30%
Bifacial modules offer higher durability even rough climatic heat /cold/snow/wind
The space requirement for installation is less because of high efficiency
It can be set up at any angle. No need to analyse or calculate the right mounting and tilt angle.
25 Years Performance warranty and 30% residential Clean Energy Credit.



Features

Sungoldpower Bifacial solar panels are solar panels that can capture sunlight on both their front and back, it can generate up to 30% more energy than conventional solar panels, Bifacial solar panels are ideal for installations where the backside of the solar array is exposed and can capture reflected light, including ground-mount systems, solar carports and canopies.

Improved PV Module Performance under PartialShading Conditions

The panel features an innovative design of PERC, half-cut cells, bypass diodes and 11-busbar
technology to maximize energy output even under partial shading.

Specification

• Model Type    SG-460WBG
• Peak Power (Pmax)    460W
• Production tolerance    ±3%
• Maximum Power Current (Imp)    13.3A
• Maximum Power Voltage (Vmp)    34.5V
• Short Circuit Current (Isc)    14.13A
• Open Circuit Voltage (Voc)    41.75V
• Maximum System Voltage    1500V
• Wind Resistance    2400Pa
• Output Cables     12 AWG (1ft per cable)
• Number of Cells     120(6x 20),60 cells in series
• Cell Type    PERC Monocrystalline (7.2x 3.6 in)
• Certifications    CE TUV
• Product Weight    60.5lbs
• Product Dimension    75.2*44.7*1.4inch
• Package Weight    130lbs（2PCS）
• Package Dimension    78.5*47.2*3.1inch（2PCS）
• Performance    5 year 95% output warranty 10 year 90% output warranty 25 year80% output warranty
• Material and workmanship warranty    10 year material and workmanship warranty.UL 61730



Product Documents

User Manual
