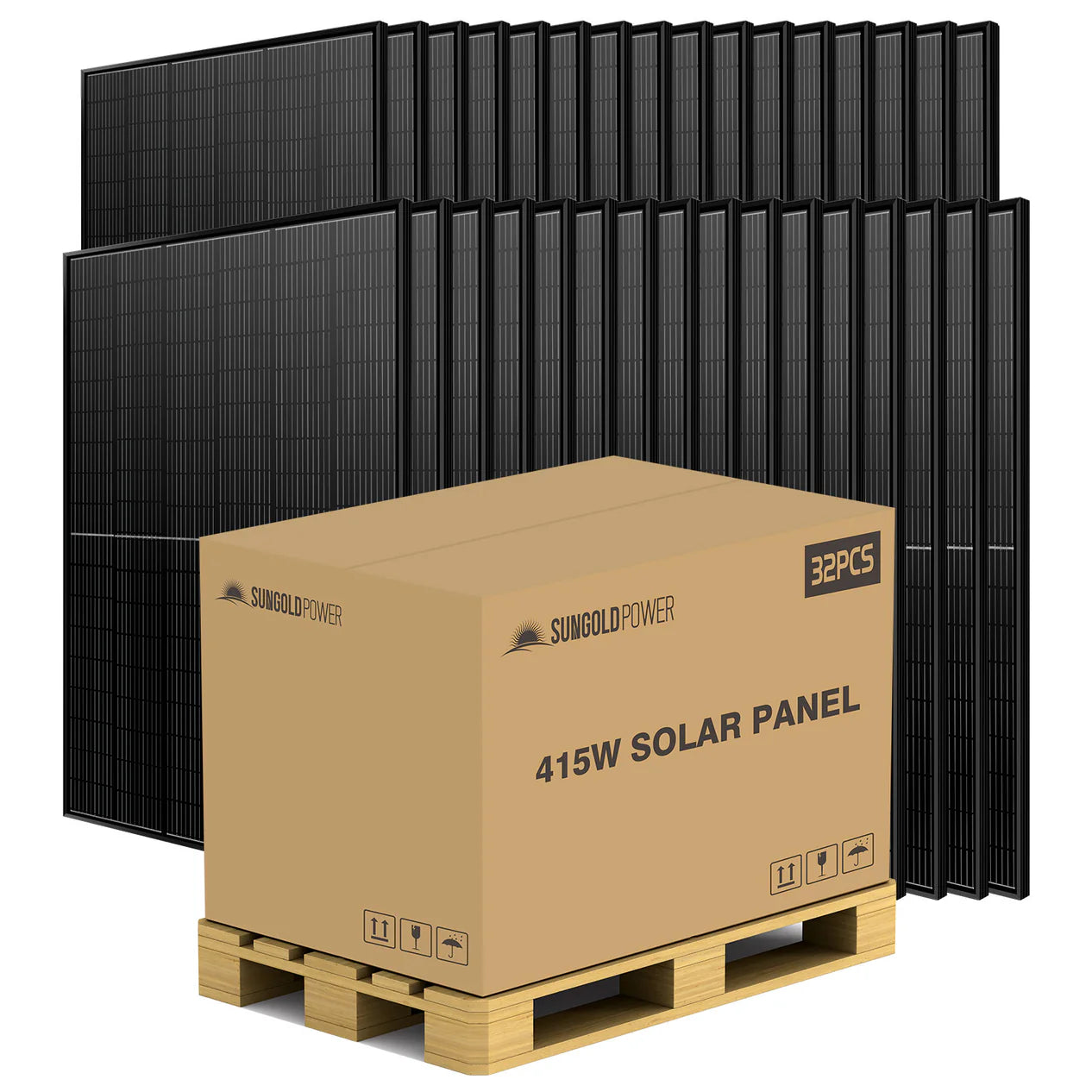

SunGoldPower 415 Watt Mono Black PERC Solar Panel Full Pallet (32 Panels ) SG-415WM Buy

SunGoldPower 415 Watt Mono Black PERC Solar Panel Full Pallet (32 Panels ) SG-415WM

---

Product Description

High Efficiency Module : This module comes with Mono PERC Half-Cut Technology and has a module efficiency up to 21.25%. SunGoldPower 415W panels provide more output per surface area than most tranditional panels.
High Tolerance: 415W solar panels are made with half-cell technology,it improves the power output and performance of solar modules because they offer a higher shade tolerance due to unique wiring system and number of cells increases.
Widely Use : 415W solar panel is ideal for off-grid,on grid or hybrid solar system,can be an ideal facility used in RV, Tiny House, marine, household power supply, commercial building etc. It helps to save power consumption and save you much more in the long future.
Warranty : the solar panels come with 10 years workmanship warranty and 25-year linear performance warranty,TUV certificated,UL certificated is coming later.UL 61730



Features

Off-grid & On-grid Solution & Hybrid System

This high efficiency PERC Solar panel works for both on-grid /off-grid solar/hybrid solar system, storing
energy with battery, reducing power bills, or powering complete off-grid house.

High efficiency

High efficiency monocrystalline PERC module, 182mono half-cells with an all-black design.

Water Proof

The solar junction box and solar connectors with an IP68 rating is completely protected from dust and will properly functional after Temporary immersion in water (up to 1m deep).

Snow and Wind Protection

Passed load test of 5400 Pa to withstand heavier snow load and 2400 Pa to withstand wind pressure .

Home Solar System

With balanced power, improved stability, and economical electricity costs.

Wide Application

With balanced power, improved stability, and economical electricity costs.

Specification

• Model Type    SG415WM
• Peak Power (Pmax)    415W
• Production tolerance    ±3%
• Maximum Power Current (Imp)    13.13 A
• Maximum Power Voltage (Vmp)    31.6V
• Short Circuit Current (Isc)    14.02A
• Open Circuit Voltage (Voc)    37.50V
• Maximum System Voltage    1500V
• Wind Resistance    2400Pa
• Output Cables     12 AWG (1ft per cable)
• Number of Cells     108(6*18)
• Cell Type    Mono 182*91mm
• Certifications    UL 61730 CE TUV
• Product Weight    45.8lbs
• Product Dimension    67.8*44.6*1.4inch
• Package Weight    100.5lbs（2PCS）
• Package Dimension    70.1*47.2*3.9inch（2PCS）
• Performance    5 year 95% output warranty 10 year 90% output warranty 25 year80% output warranty
• Material and workmanship warranty    25 years Linear Product Workmanship Warranty and 10 years workmanship warranty
