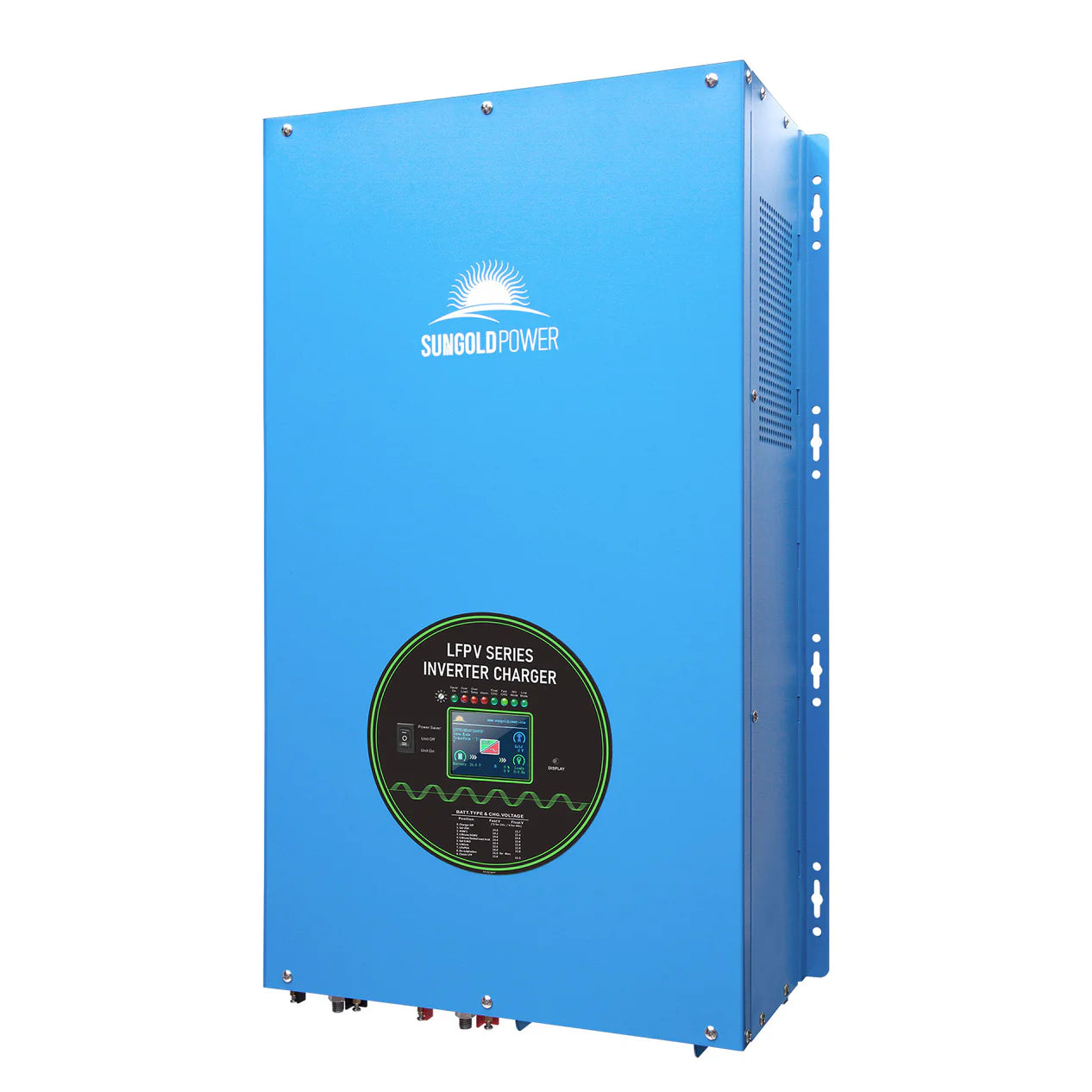

SunGoldPower 18KW 48V Split Phase Pure Sine Wave Inverter Charger LFPV18K48V240VSP

---

Product Description

LF-PV Series Pure Sine Wave Inverter is a combination of a 48-volt inverter, AC charger, and Auto-transfer switch into one complete system (without MPPT).
The split-phase inverter requires 240VAC input and can provide 120VAC or 240VAC output power for all kinds of appliances, and it can output 50 or 60Hz via the SW4.
AC/Battery Priority: Our inverter is designed with AC priority by default, you can choose the battery priority by SW5 switch.
Features: Smart Remote Control, Automatic Generator Starting (AGS), Suitable for different kinds of batteries.
Application: for all kinds of loads: refrigerators, freezers, microwaves, dryers, air conditioners, pumps, and all the big home and business applications.



Features

Main Specification

• Model    LFPV18K48V240VSP
• Continuous Output Power    18.0KW
• Surge Rating(20s)    54.0KW
• Output Waveform     Pure Sine Wave
• AC Output Voltage    120V and 240V
• AC Input Voltage    240V( not suitable for AC 120V input )
• DC Battery Voltage    48Vdc
• AC Battery charger    95±5Amp
• Output Frequency    50Hz /60Hz
• Typical transfer Time    10ms(Max)



DC Input

• Nominal Input Voltage    48.0Vdc

• Minimum Start Voltage    40.0Vdc / 42.0Vdc

• Low Battery Alarm     42.0Vdc / 44.0Vdc

• Low Battery Trip    40.0Vdc / 42.0Vdc

• High Voltage Alarm    64.0Vdc

• Low Battery voltage recover    62.0Vdc

• Power Saver on Idle Consumption    50W

• Power Saver off Idle Power    270W



Charger

• Output Voltage    Depends on battery type
• Battery Initial Voltage for Start Up    40-62.8V
• Over Charge Protection Shutdown    62.8V
• Charger Breaker    100A
• Input Voltage Waveform    Sine wave (Grid or Generator)
• AC input range    184-253Vac/140-270Vac
• Nominal Input Frequency     50Hz or 60Hz (Auto detect)



Packaging

• 18000W 48V Split Phase Pure Sine Wave Power Inverter
• English Manual
• Remote Control
• BTS Cable
• Unit Weight    197 LB
• Unit Size    28.7 x 16.5 x 8.7 inch
• Shipping Weight    232 LB
• Shipping Size    34.25 x 21.3 x 17.3 inch



Product Documents

User Manual
