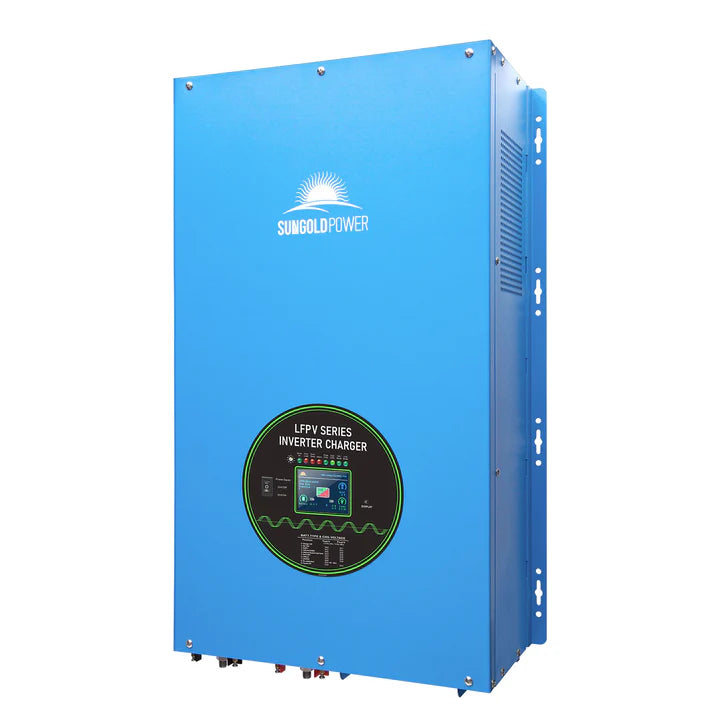

SunGoldPower 15KW 48V Split Phase Pure Sine Wave Inverter Charger LFPV15K48V240VSP

---

Product Description

LF-PV Series Pure Sine Wave Inverter is a combination of a 15000-watt inverter, AC charger, and Auto-transfer switch into one complete system.
The split-phase inverter requires 240VAC input and can provide 120VAC or 240VAC output power for all kinds of appliances, and it can output 50 or 60Hz via the SW4.
AC/Battery Priority: Our inverter is designed with AC priority by default, you can choose the battery priority by SW5 switch.
Features: Smart Remote Control, Automatic Generator Starting (AGS),Suitable for different kinds of batteries.
Application: for all kinds of loads: refrigerators, freezers, microwaves, dryers, air conditioners, pumps, and all the big home and business applications.



Features



Main Features

• 15KW split phase pure sine inverter charger DC 48V AC 240V input AC output 120V/240V

• Auto Generator Start (AGS)

• Include Battery Temperature Sensor (BTS) and Remote Control

• 8 kinds of battery voltage selection ( lithium LiFePO4, gel, AGM and lead Acid batteries）

• Compatible With All kind of Home & Office Appliances

• Powerful Charge Rate Up to 100Amp, Selectable From 0%-100%

• Built-in transfer switch and battery charge, backup or off grid power solutions

• AC/Battery Priority Mode, Designates the Inverter-Preferred UPS Configuration

• 4-step Intelligent Battery Charging, PFC (Power Factor Correction) for Charger

• 8 ms Typical Transfer Time Between Utility & Battery,Ensure Power Continuity

• 15s Delay Before Transfer when AC Recover, Protection for Load when Used with Generator

Main Specification

• Continuous Output Power :15.0KW
• Surge Rating(20s) :45.0KW

• Output Waveform :Pure Sine Wave

• AC Output Voltage: 120V and 240V

• AC Input Voltage:240V( not suitable for AC 120V input )

• DC Battery Voltage:48Vdc

• AC Battery charger:100±5Amp

• Output Frequency :50Hz /60Hz

• Typical transfer Time :10ms(Max)

DC Input

• Nominal Input Voltage :48.0Vdc

• Minimum Start Voltage :40.0Vdc / 42.0Vdc

• Low Battery Alarm :42.0Vdc / 44.0Vdc

• Low Battery Trip :40.0Vdc / 42.0Vdc

• High Voltage Alarm :64.0Vdc

• Low Battery voltage recover :62.0Vdc

• Power Saver on Idle Consumption: 45W

• Power Saver off Idle Power: 225W

Charger

• Output Voltage: Depends on battery type

• Battery Initial Voltage for Start Up: 40-62.8V

• Over Charge Protection Shutdown :62.8V

• Charger Breaker: 100A

• Input Voltage Waveform :Sine wave (Grid or Generator)

• AC input range:184-253Vac/140-270Vac

• Nominal Input Frequency :50Hz or 60Hz (Auto detect)

Packaging

• 15000W 48V Split Phase Pure Sine Wave Power Inverter

• English Manual

• Remote Control

• BTS Cable

• Unit Weight: 176.6 LB

• Unit Size: 28.7x 16.5x 8 inch

• Shipping Weight: 213 LB

• Shipping Size: 34.25x 21.3x 16.2 inch



Product Documents

Specifications Sheet

User Manual
