Commercial Flagpole Internal Halyard 30′ – 5″ Base Online Shop From China

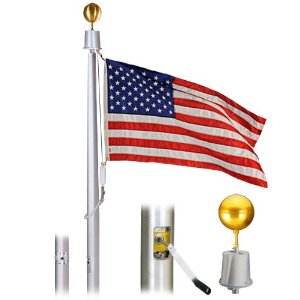

These deluxe internal halyard flagpoles contain a winch mounted inside the flagpole shaft, operable only with a removable crank handle. As the stainless steel cable unwinds from the winch, it passes up through the inside of the flagpole shaft, over the truck sheave to the outside of the shaft, where the retaining ring provides a sliding anchor. A counterweight, heavily coated with neoprene, attached to the retaining ring, allows the halyard to be lowered for fastening or removing the flag. The halyard is then raised completely out of reach of vandals.
The improved winch is gearless and self locking at any point, eliminating the need for a separate brake. This direct drive winch provides rapid raising and lowering of the flag with little effort. This new, improved design does not require any welding, thus avoiding discoloration when an anodized finish is desired. No monthly lubrication is needed. Our cone-tapered ground-set aluminum flagpoles are precision fabricated from new, 6063-T6 tubing using state-of-the art manufacturing processes. Poles with lengths less than 38’6″ are shipped as one-piece. The poles featured here have a satin finish (custom finishes/colors available, please email us). Every pole includes everything you need to display one flag (gold ball top is optional). Please e-mail us with any questions about our flagpoles!
NOTE: The listed height of the pole is the “above ground” or exposed height.

Exposed Height: 30 Feet
Overall Length: 33 Feet
Number of Sections: 1
Butt Diameter: 5″
Top Diameter: 3″
Wall Thickness: .156″
Max Wind Speed w/ Flag: 91 mph
Max Wind Speed No Flag: 119 mph
Color: Satin, Clear, Bronze or Black Finish Aluminum
Mounting: Galvanized steel Foundation Sleeve
Flash Collar: Yes Flash Collar
Suggested Flag Size: 5’x8′
Weight: 187.0 lbs.

NO FREE SHIPPING ON FLAGPOLES – Shipping costs shown at checkout.
